Electrical Panel Upgrade vs Service Upgrade

Homeowners in Newmarket often hear terms like panel upgrade, service upgrade, or sub panel when planning renovations or adding high demand electrical equipment to their home. These terms can be confusing, and choosing the wrong upgrade can lead to unnecessary costs or unresolvable electrical limitations. Newmarket also has a unique mix of older and newer housing, which means electrical needs vary significantly between neighbourhoods such as Glenway, Armitage, Bristol London, Central Newmarket, Stonehaven, and the older Davis Drive corridor.

Here, we review the exact difference between an electrical panel upgrade and an electrical service upgrade and how each option affects safety, compliance with the Ontario Electrical Safety Code, home insurance, and your long term electrical capacity.

What Is an Electrical Panel Upgrade

Electrical panel is the metal box that is located inside your home, most often in the garage or basement. The panel distributes electricity to circuits throughout the property and acts as a safety device through breakers that interrupt faults and overloads.

A panel upgrade improves the safety, layout, and capacity of your existing electrical distribution, but does not bring more power from the utility.

Common Reasons Newmarket Homeowners Need a Panel Upgrade

  • The home has a fuse box or obsolete panels such as Stab Lok or Zinsco
  • Breakers trip repeatedly or show signs of overheating
  • There is no remaining space for new circuits during renovations
  • Insurance companies will not insure homes with outdated panels
  • ESA requires modern breaker protection when significant electrical changes are made
  • The existing panel is located in an unsafe or inaccessible location and must be replaced to meet code

Homes built in older areas near Main Street, Gorham, Patterson, and the Davis Drive corridor often contain equipment dating back several decades. These properties benefit significantly from panel upgrades because their original electrical distribution systems were never intended for today’s appliances, HVAC equipment, and personal electronics.

What a Panel Upgrade Includes

  • Removal of the existing breaker panel
  • Installation of a new breaker panel with modern breaker technology
  • Replacement of grounding and bonding where required
  • Reorganization of circuits for improved safety and labeling
  • ESA inspected installation

What Is an Electrical Service Upgrade

Electrical service is the system that brings power from Alectra Utilities into your home. It includes the service mast or service cable, the meter base, and the main breaker that controls the total amperage available to the property.

Common Reasons Newmarket Homeowners Need a Service Upgrade

  • The home still has 60 amp or 100 amp service that cannot support modern electrical demand
  • Installation of an electric vehicle charger that requires additional load capacity
  • Addition of a heat pump, electric furnace, or other high draw HVAC upgrade
  • Installation of a hot tub, sauna, or spa circuit
  • Creation of a basement apartment or secondary suite that requires separate circuits and higher total load
  • Major kitchen renovations adding several new high demand appliances
  • ESA load calculations indicate the existing service cannot safely handle new equipment

A service upgrade increases the total electrical capacity of your home by replacing or upsizing the equipment at the main service entrance. This upgrade raises the home’s amperage from older ratings such as 60 amp or 100 amp to the modern 200 amp standard used across Newmarket.

What a Service Upgrade Includes

  • Replacement of the meter base with a larger, code compliant unit
  • Upgrading the service mast or service cable to support higher amperage
  • Installation of a new main breaker sized to match the upgraded service
  • Ensuring grounding and bonding systems meet the Ontario Electrical Safety Code
  • Temporary disconnection and reconnection coordinated with Alectra Utilities
  • ESA permit and final inspection

Unlike a panel upgrade, a service upgrade brings more power from the utility and enables your home to support additional electrical loads safely.

Panel Upgrade vs Service Upgrade, Quick Comparison Table

Feature

Panel Upgrade

Service Upgrade

Increases total home amperage

No

Yes

Replaces indoor breaker panel

Yes

Sometimes

Increases available circuits

Yes

Often

Requires Alectra coordination

Yes

Yes

ESA inspection required

Yes

Yes

Required for EV charger or hot tub

Sometimes

Often

Typical completion time

1 day

1-2 days

Average cost (Newmarket)

$1,800–$3,000

$2,000–$5,000+

Which Upgrade Should You Choose. Easy Checklist

Choosing between an electrical panel upgrade and an electrical service upgrade comes down to two things: the condition of your existing equipment and how much power your home actually needs.

Here is the short checklist that will help you understand which upgrade is right for you:

If your home still has 60 amp service or 100 amp service, you are a strong candidate for a service upgrade, especially if you are adding new loads.

If you already have 200 amp service, you may only need a panel upgrade or a sub panel, not a full service upgrade.

You likely need a panel upgrade if:

  • You have a fuse box rather than breakers
  • You have an obsolete brand such as Stab Lok or Zinsco
  • Your panel shows rust, heat damage, buzzing, or loose breakers
  • Your insurer has flagged the panel as a risk

In these cases, upgrading the panel improves safety, insurance eligibility, and resale value, even if you keep the same service size.

If your panel has no room for new breakers but your home already has enough power, the issue is space, not capacity. A new panel or a sub panel can provide the extra circuits you need.

If breakers trip when you use multiple large appliances together, or the main breaker trips, you may have a capacity problem and need a service upgrade.

If you plan to add equipment that draws a large amount of power such as an EV charger, a heat pump, a hot tub, or a full secondary suite, you will almost always need a electrical service upgrade.

A load calculation is the only reliable way to confirm, but as a rule, these projects often require 200 amp service in Newmarket homes.

A sub panel is not a substitute for a service upgrade when the total amperage is too low, and it does not fix an unsafe or obsolete main panel.

However, a sub panel can be a good solution when:

  • Your main panel is modern and in good condition
  • Your service size, often 200 amp, is sufficient
  • You simply need more circuits in a specific area such as a garage or basement suite

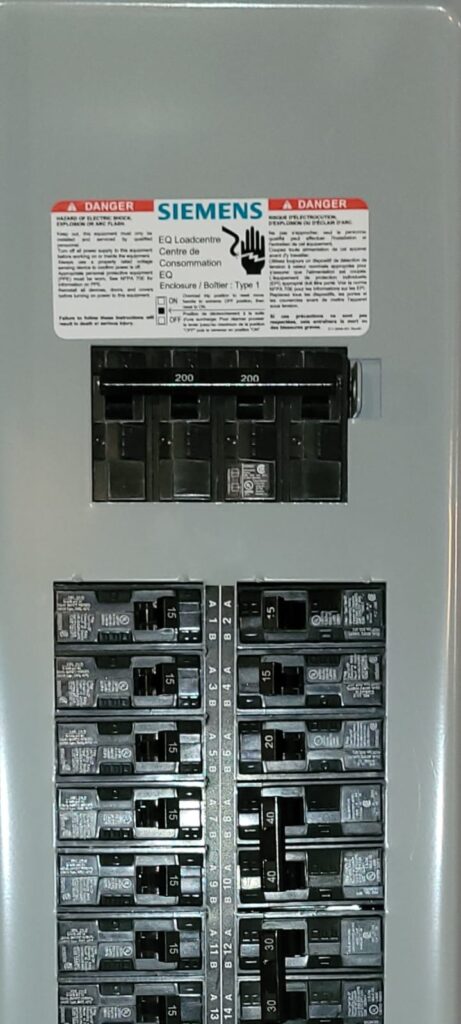

200-amp-panel
Service size is usually shown on the main breaker, such as this 200 amp panel.

Common Electrical Upgrade Questions

What is a main panel upgrade?

A main panel upgrade replaces your existing breaker panel with a new one, often to increase safety, capacity, or meet code requirements.

Can I upgrade my electrical panel without upgrading the service?

Yes, if your current service (e.g., 100 or 200 amps) is sufficient, you can simply upgrade the panel itself. Load calculation confirms sufficient capacity.

Should I upgrade to 200 amp service?

If you’re planning a renovation, adding major appliances, or want peace of mind for the future – yes, you should upgrade your electrical service to 200 amps.

How much does it cost to upgrade an electrical panel?

In Newmarket, most panel upgrades cost between $1,800–$3,000, depending on the complexity and location of the panel.

Do I need an ESA permit for a panel or service upgrade?

Yes. Both upgrades require an ESA permit and inspection to be compliant in Ontario.

Will a panel upgrade lower insurance premiums?

In many cases yes, because insurance companies prefer modern breaker panels over fuse boxes or obsolete equipment.

Find Out Whether Your Home Needs a Panel Upgrade or a Service Upgrade

Many older Newmarket homes require both: electrical panel and service upgrade to meet modern electrical demand. A panel upgrade replaces the breaker panel inside your home and improves safety and circuit capacity. A service upgrade increases the total power your home receives from Alectra Utilities.

In short:

  • Upgrade your panel if your current one is outdated, full, or uses fuses.
  • Upgrade your service if you’re adding major loads or still running on 60A or 100A service.
  • Add a sub-panel if you need more circuits but still have spare capacity in your main panel.

If you are unsure whether your home needs a panel upgrade, a service upgrade, or both, our licensed electricians in Newmarket can complete an ESA certified assessment and recommend the correct solution based on your electrical demand. Book a code compliant electrical evaluation for your Newmarket home.
